XPS Underfloor Heating Boards Supplier in China

Source grooved XPS underfloor heating boards from Banarta in China for distributor and heating-system supply. Compare aluminium-faced panels, pipe layouts and board sizes; send a configuration schedule for bulk pricing, samples and custom requirements.

COMPARE YOUR STARTING POINT

Start with panel size and your pipe drawing

1200 x 600 mm is 0.72 m2 gross per board; 1500 x 600 mm is 0.90 m2. These are uncut rectangular areas, not usable project coverage. Confirm pipe routing and the complete floor build-up for either size.

SPECIFICATION TO PRODUCTION

Routing requirements
Compare the 1200 x 600 mm and 1500 x 600 mm formats against the same pipe layout. Send pipe diameter, spacing and straight / return quantities for configuration review.
Sample and order schedule
Discuss the aluminium sheet facing, panel thickness and sample fit. Use the agreed drawing revision to identify each panel pattern in the order.
Sample, packing and delivery details

Request pieces per pack, separate straight/return labels, protection for faced surfaces, pallet dimensions and gross weight.

Share the information you have; mark undecided details for review. Sample terms, minimum quantities, pricing and lead time are confirmed for the selected configuration in the offer.

Discuss specifications & samples →

Showing all 10 results

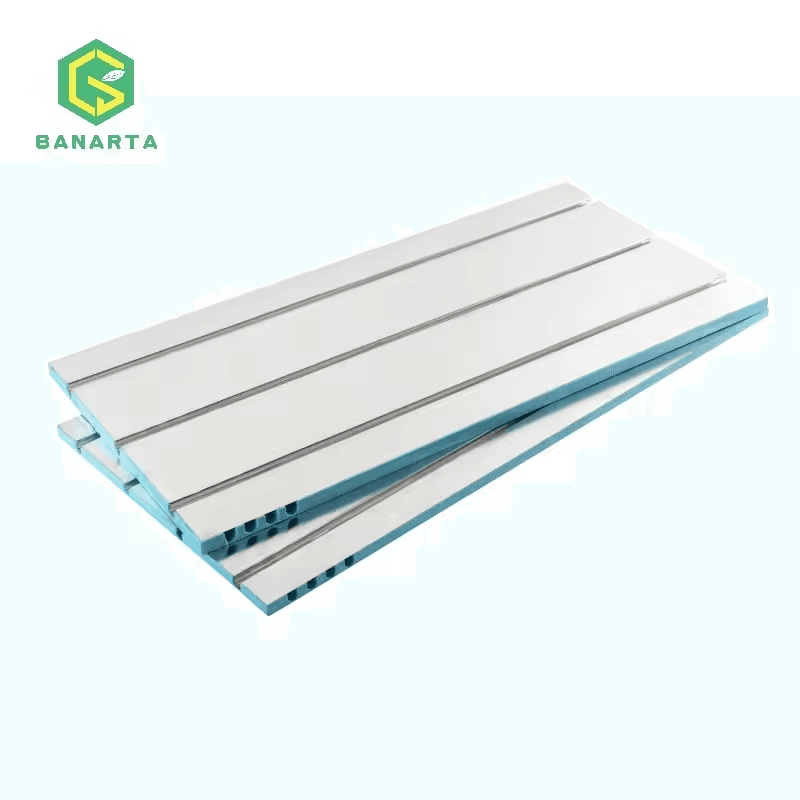

Grooved aluminium-faced foam panel detail
Grooved panel detail. Send your pipe layout to discuss the selected facing, groove arrangement and sample fit.

FROM MATERIAL TO YOUR SPECIFICATION

Bring your drawing. Discuss the details.

Work with Banarta on the product construction, dimensions, sample requirements and supply details for your application.

  1. Share your application, dimensions or drawing.
  2. Review the proposed configuration and sample requirements.
  3. Confirm the selected specification, packing and delivery terms in the offer.
Discuss your specification →

SELECTION GUIDE

Choosing your material

Source grooved XPS underfloor heating boards from Banarta in China for distributor and heating-system supply. Compare aluminium-faced panels, pipe layouts and board sizes; send a configuration schedule for bulk pricing, samples and custom requirements.

Compare published XPS heating-board sizes

The two aluminum-sheet-faced boards below list different panel lengths. Both product pages list 25–50 mm thickness options and a 16 mm pipe option. Select the panel size around your circuit layout; confirm routing, pipe fit, aluminum thickness and the supplied grade separately.

Board modelPanel sizeThickness
Aluminum-Faced XPS Heating Panel1200 × 600 mm25–50 mm
XPS Hydronic Floor Heating Board1500 × 600 mm25–50 mm

Use these two product references when requesting the corresponding board size. These values come from their published specifications and are not a specification for every board in this category. Confirm the current datasheet, facing and routing drawing for the option quoted.

Grooved underfloor heating boards for trade supply

China’s manufacturing network brings XPS cores, aluminium facings and routed formats into one sourcing plan. Banarta coordinates these options with manufacturing partners for bulk and repeat orders. For UK and European distribution, list quantities by board size and thickness, pipe outside diameter, groove spacing and straight or return profile. Include label language, pack counts and the delivery country so the quote matches your product range.

For a bulk or custom quotation, send your specification, quantity and destination. Ask us to confirm the minimum order, production schedule and shipping terms for your selected items. Discuss your sourcing requirements with Banarta.

1200 or 1500 mm boards: compare the layout, not just the count

The linked 1200 × 600 mm board has a gross rectangular area of 0.72 m²; the 1500 × 600 mm board has 0.90 m². For an illustrative 90 m² floor, this is 125 smaller boards or 100 longer boards before cuts, unusable edges and spares. These are gross-area estimates, not completed layout quantities.

A longer board reduces the nominal piece count, but a narrow room or frequent turns can change cutting waste. Straight channels, return zones and manifold feed zones must fit the circuit drawing. Use the straight, return and feed-zone quantity guide to allocate each profile.

Three different dimensions to put on the drawing

DimensionWhat it describes / What it does not describe
Pipe outside diameterThe pipe that must fit the channel

What it does not describe: Distance between adjacent pipe runs

Pipe spacingCentre-to-centre distance set by the heating design

What it does not describe: Board thickness or pipe wall thickness

Total floor build-upAll specified layers from the supporting base to the finish

What it does not describe: The heating panel thickness alone

For restricted renovation height, use the full floor-height calculation. For timber, carpet or an underlay, use the floor-covering thermal resistance guide; changing the finish can change the heating design even if the pipe still fits.

Start with the 1200 × 600 mm aluminum-faced XPS panel, review aluminum foil tape for the installation detail, or compare the EPS panel option. Share the pipe layout, floor build-up and quantity when requesting a quotation.

How should I compare XPS and EPS heating panels?

Compare the complete floor systems: panel format, insulation thickness, pipe diameter, groove or fixing pattern, support layers and finish compatibility. The foam name alone does not determine which system fits your project. Read the XPS versus EPS heating-panel comparison before choosing.

Can tiles or timber be installed directly on a grooved XPS panel?

Do not assume direct installation is suitable. Confirm the substrate, support, covering or load-distribution layers and bonding method for the chosen floor system. A grooved heating board is not automatically a ready-to-tile waterproof backer board. Use the panel, pipe and floor-finish compatibility guide to review the assembly.

Is an overlay heating board a structural floor board?

These grooved XPS heating panels are components of a specified floor assembly. A foam compressive-strength figure does not establish a spanning capacity, a long-term design load or approval to omit support layers. If your purchase specification calls for a structural underfloor heating board, send the required support arrangement and assembly performance for technical confirmation before selecting a product.

For a 25 mm panel enquiry, identify the panel thickness separately from the complete floor-height limit. Start with the 1200 mm aluminium-faced panel configuration and include every required layer in the floor build-up; 25 mm does not describe the installed floor height.

What should I send for a heating-panel quotation?

Send the floor plan and pipe circuit layout, pipe outside diameter and spacing, panel thickness, available floor height, final floor finish, aluminum facing requirement, quantity and delivery destination. Include any required performance documents. Request a project quotation with these details so the proposed configuration can be checked.

For repeat or bulk supply, follow the aluminium-faced XPS heating panel buying guide to distinguish foil, sheet and separate plates, and confirm the routing drawing and quoted floor build-up before approving the order.

For a combined panel and accessory order, use the underfloor heating bulk-order checklist to reconcile model quantities, usable coverage, compatible fixings and packing units.

Download the bulk enquiry worksheet (Excel .xlsx) to list board size, total thickness, aluminium facing, pipe outside diameter and quantity for each configuration. Email the completed file with groove drawings where relevant to Tina at Banarta.
